Aluminum rod inspection

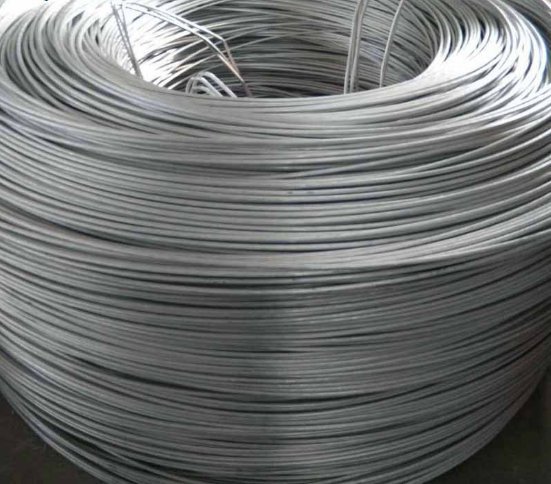

Aluminum rod
Electrical aluminum rod is a semi-product, but it is the quality center of electrical aluminum conductor products. The production of electrical aluminum rod is the center of the whole electrical aluminum conductor production quality assurance system. The performance of the electrical aluminum rod is mainly determined by the composition and its process treatment, but its quality and the impact on the subsequent drawstring production mainly depends on continuous casting and rolling, and the problems caused by it account for 80% to 90% of the entire production.
| Name | Aluminum Rod | |||
| Dianmeter | 9.5±0.5 or 12±0.5mm | |||
| Brand | Temper | Tensile strength(Mpa) | (Elogation)% | Resistivity(20℃)/(nΩ • m) Max |
| 1350 | o | 60~95 | 25 | 27.90 |
| H12 | 85~115 | 12 | 28.03 | |
| H14 | 105~135 | 10 | 28.08 | |
| H16 | 120~150 | 8 | 28.12 | |
| 1370 | o | 60~95 | 25 | 27.90 |
| H12 | 85~115 | 11 | 28.01 | |
| H13 | 105~135 | 8 | 28.03 | |
| H14 | 115~150 | 6 | 28.05 | |
| H16 | 130~160 | 5 | 28.08 | |
| 6101 | T4 | 150~200 | 10 | 34.50 |
| 6201 | T4 | 160~220 | 10 | 34.50 |
| 8A07(Heat-resisting Alminum Alloy) | H15 | 95~135 | 7 | 28.64 |
| H17 | 120~160 | 6 | 31.25 | |
| 8030(Alminum Alloy) | H14 | 105~155 | 10 | 29.73 |
