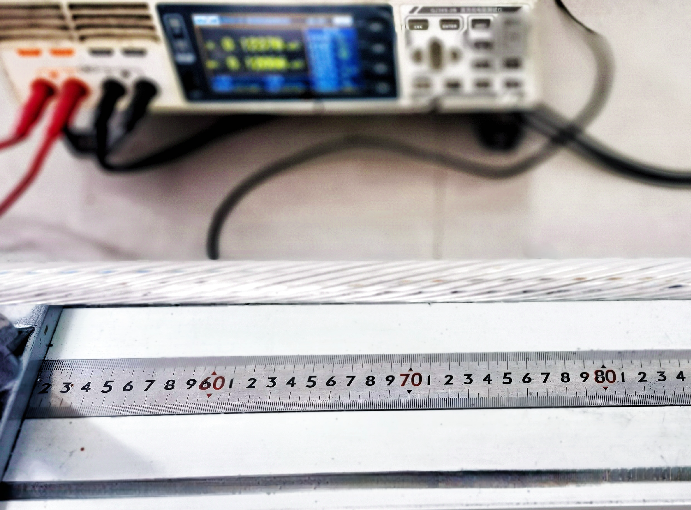

Bare Conductor Inspection
Bare Conductor(AAAC 60*2.65)
Our company produces bare conductors are:
Aluminum conductor, aluminum alloy conductor, aluminum conductor steel reinforced, aluminum alloy conductor steel reinforced, alvanized steel wire, etc.
Production process:
The raw material aluminum rod (aluminum alloy rod, steel rod) is processed by wire drawing machine to make monofilament. Then, according to customer requirements, n monofilm wheels are installed on the stranding machine for stranding to make conductors. The conductor is composed of at least 7 monofilaments twisted together.
Aluminum conductor, aluminum alloy conductor, aluminum conductor steel reinforced, aluminum alloy conductor steel reinforced, alvanized steel wire, etc.
Production process:
The raw material aluminum rod (aluminum alloy rod, steel rod) is processed by wire drawing machine to make monofilament. Then, according to customer requirements, n monofilm wheels are installed on the stranding machine for stranding to make conductors. The conductor is composed of at least 7 monofilaments twisted together.
| Conductor inspection items (empty items are not required by customers) | ||||
| Conductor type | All Aluminum Alloy Conductor(AAAC 60*2.65mm2) | |||
| Test index | Standard value | Max | minimum | Test value |
| Conductor dc resistance | 0.0951 | |||
| Outer diameter of conductor | 20.7 | 20.90 | 20.50 | 20.90 |
| Aluminum wire outer diameter diameter | 2.65 | 2.66 | 2.64 | 2.64 |
| Elongation of aluminum wire | 34 | |||
| Conductor surface | Smooth surface without defect | Up to standard | ||
| Tensile strength of monofilament | 84 | |||
| Outer pitch multiple | 13 | |||
| Number of conductor strands | 60 | 60 | ||
| Conductor twist | Towards the left | |||
