ALUMINUM XLP UL RHH/RHW-2 OR USE-2 90℃ 2KV

Application:

For use from the lower control box at the base of the wind power tower and out to the step-up transformer through conduit for use in free air, raceways or direct burial in accordance with NEC. Industrial environments where superior insulation toughness and chemical resistance is required maximum operating temperature not to exceed 90℃ in wet or dry locations.

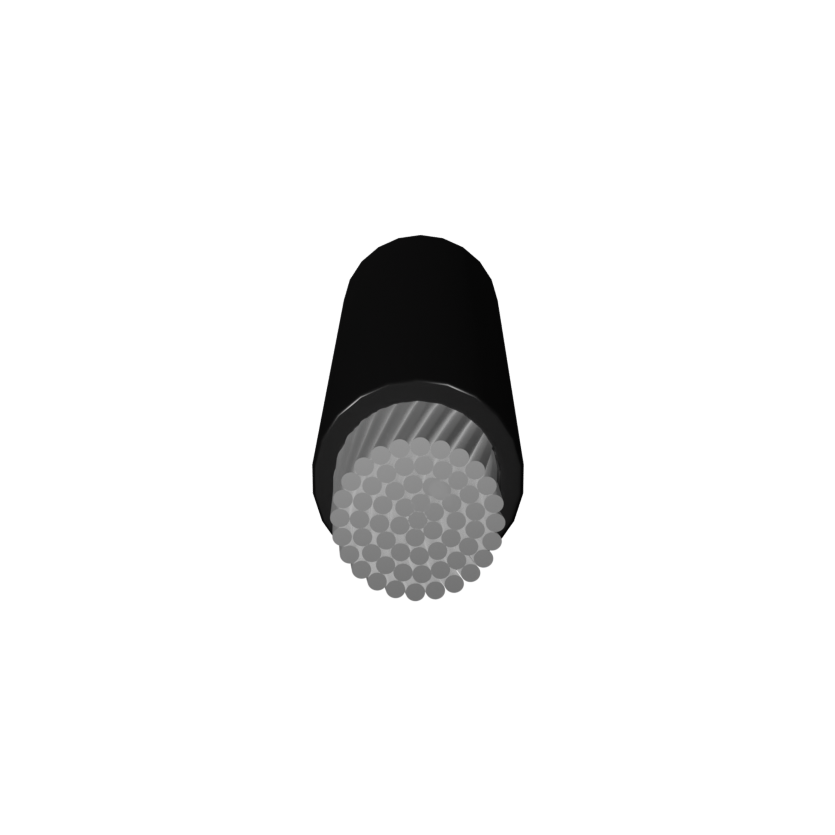

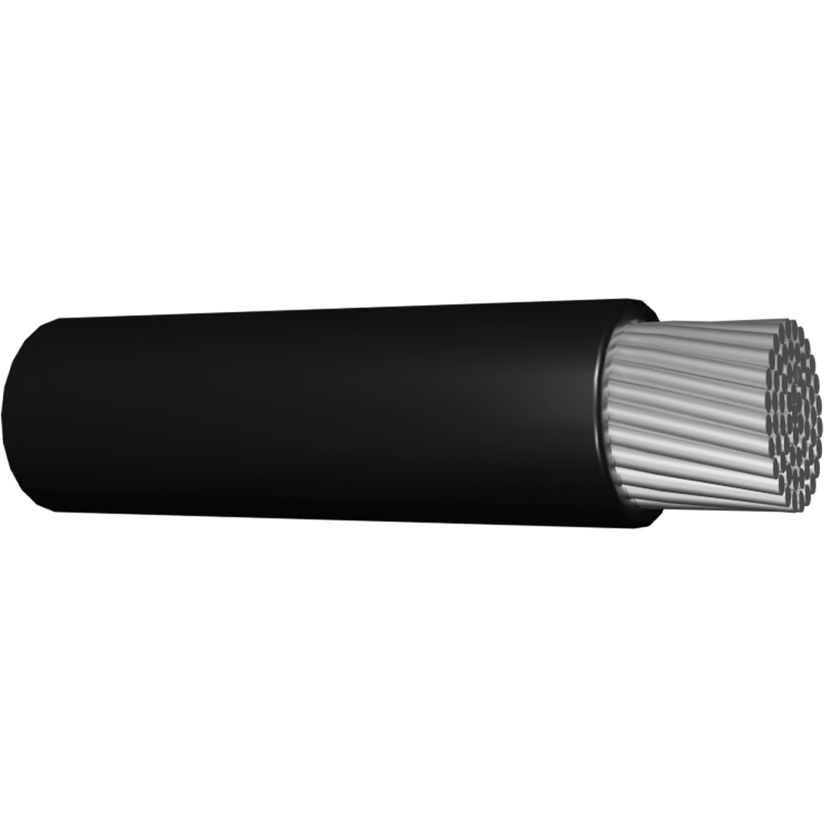

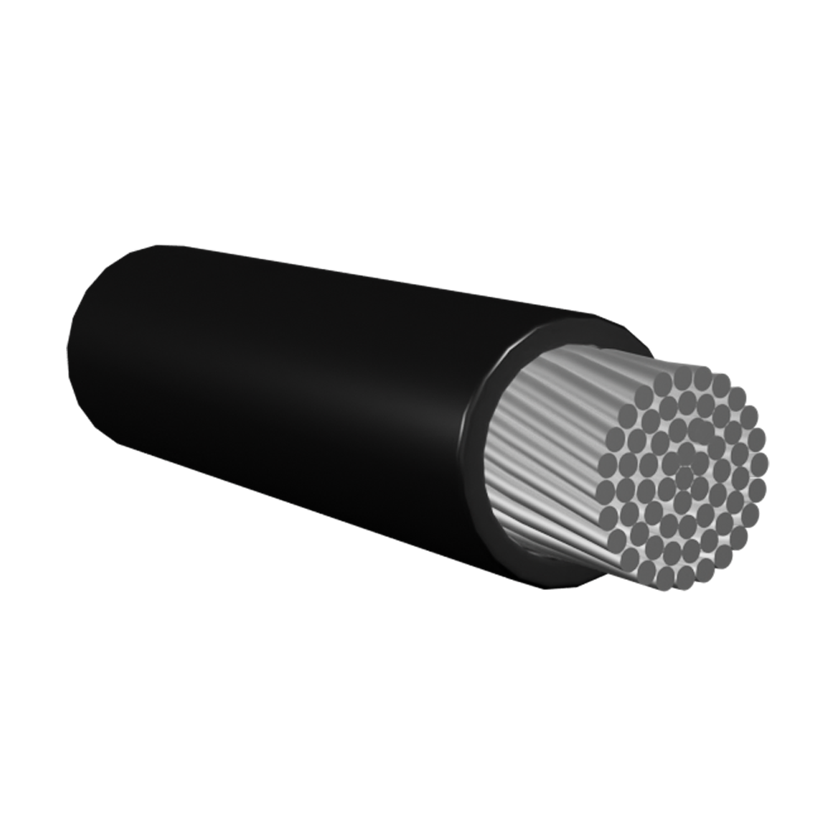

Construction:

Conductor: 8 AWG thru 1000 kcmil compacted aluminum ACM(AA-8000 Series)
Insulation: Flame-retardant Cross-Linked Polyethylene(XLPE) - Black
Print: HUAXING CABLE XLP AWG/KCMIL TYPE RHH/RHW-2 SR(UL) 2000V(MM/YYYY) SEQUENTIAL FOOTAGE MARK

Compliances:

National Eletric Code(NEC)
UL 44 Stranded for rubber-insulated wires and cables
ICEA S-95-685/NEMA WC70
UL listed as Type RHH/RHW-2
OSHA acceptable

Features:

Rated at 90℃ wet or dry
UV resistant - black is marked SR
Excellent electrical, thermal and physical properties
Excellent resistance to moisture
Excellent resistance to crush, compression cuts and heat deformation

Packaging:

Colors optional, to order.
All produced or cut-to-order material will be shipped on non-returnable.
