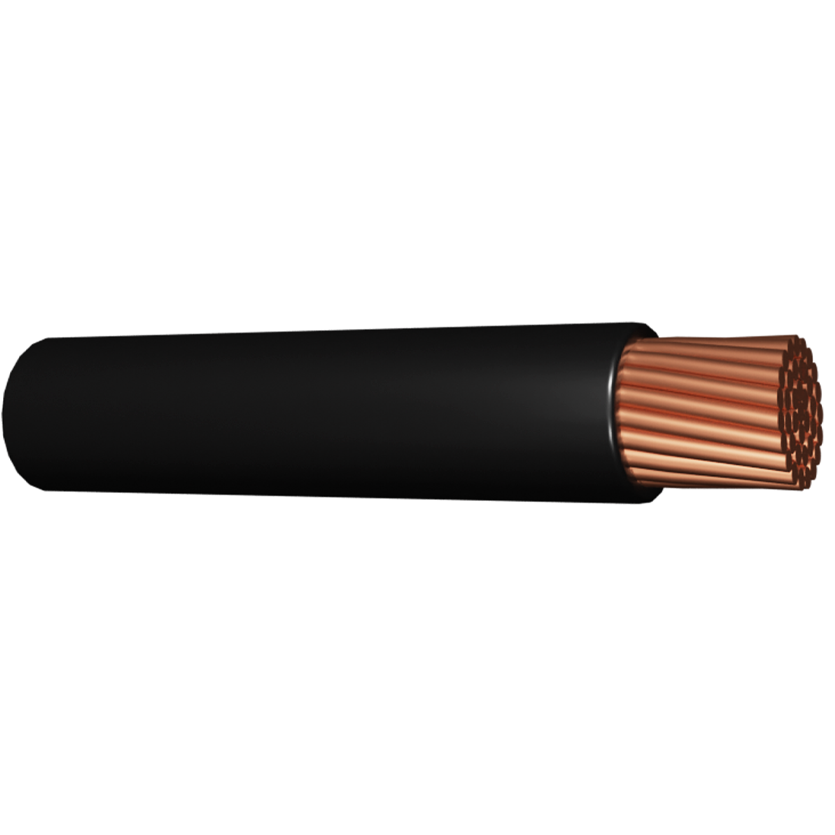

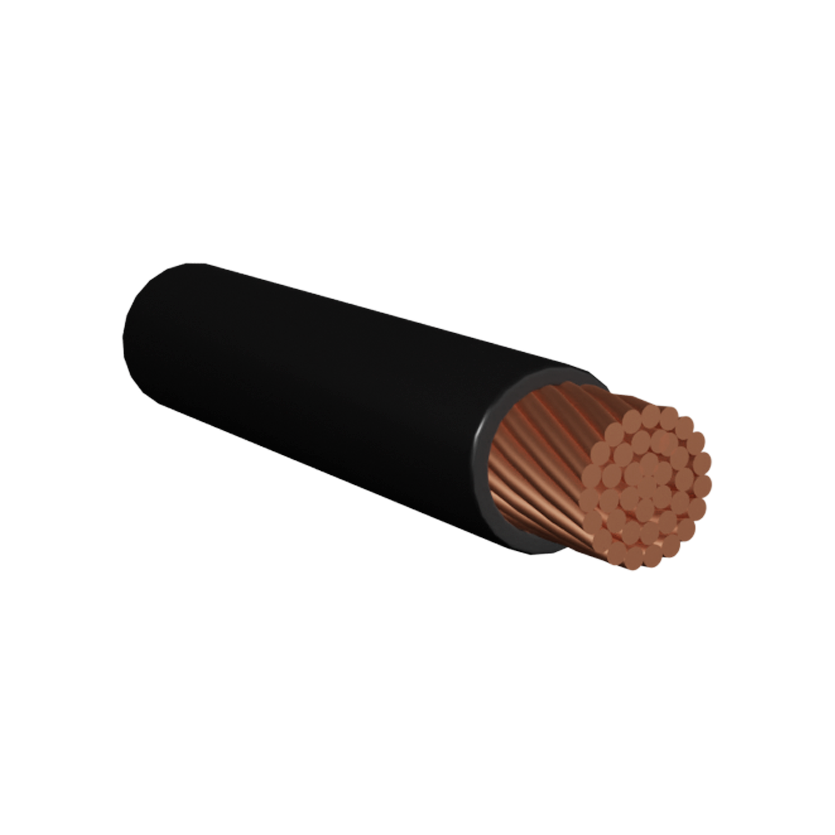

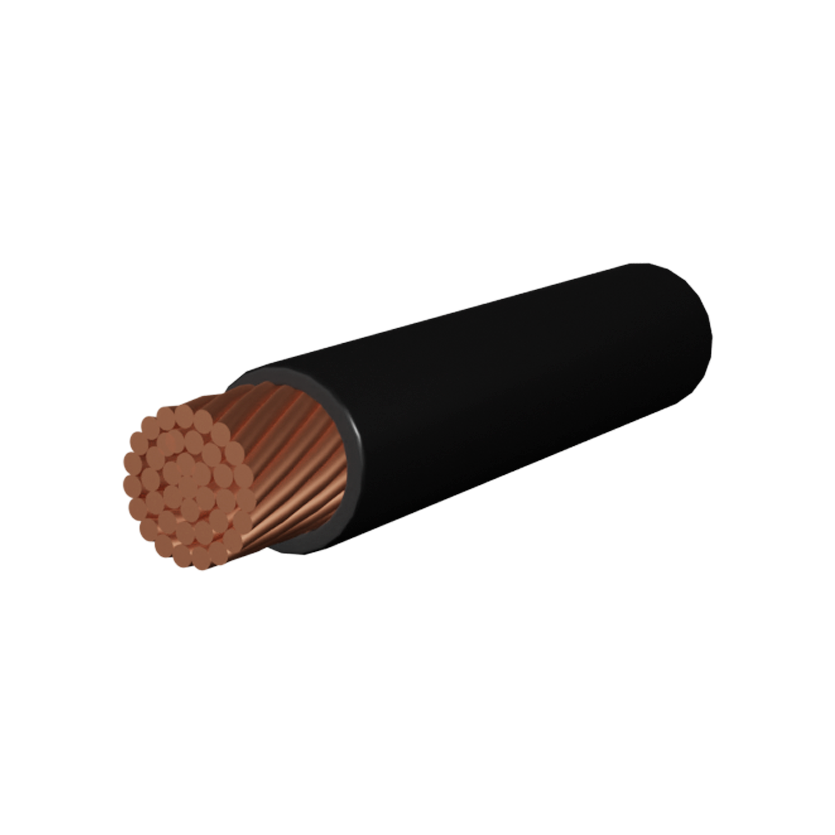

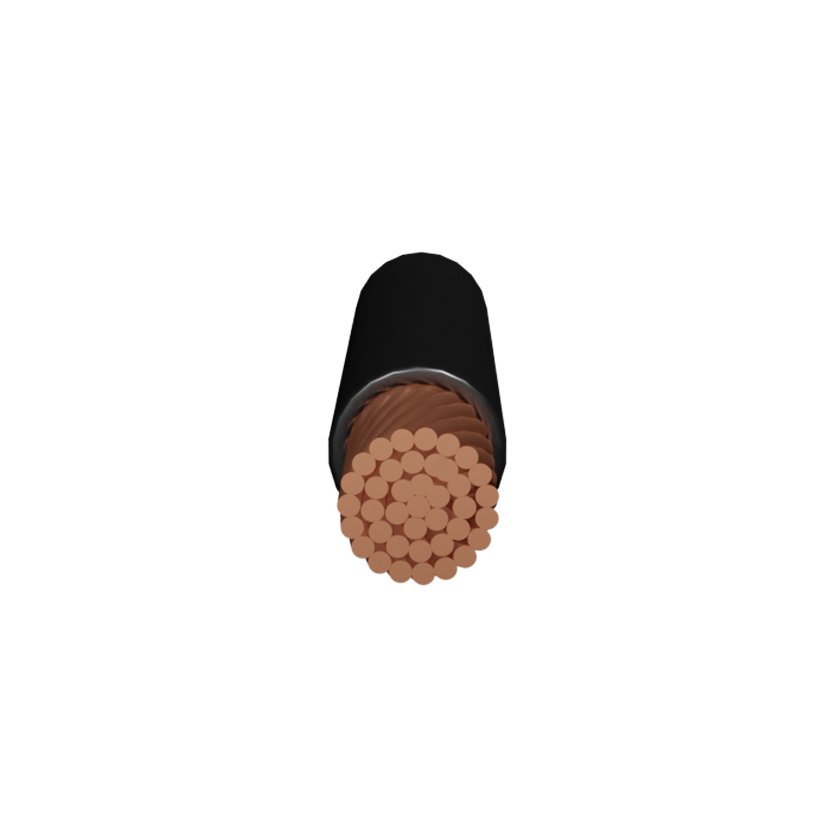

USE-2/RHH/RHW-2 XLP-USE-2 COPPER CONDUCTOR 600V, 90℃ WET OR DRY

Application:

Single conductor cross linked polyethylene(XLP or XLPE) Type RHW-2 and USE-2 for use at 600 volts. It is approved per the NEC for general purpose lighting and power applications at a maximum continuous operating temperature of 90℃ in wet and dry locations. For use in free air, raceways or direct burial in accordance with NEC.

Construction:
The single copper conductors shall be solid or stranded annealed or hard uncoated copper per UL83 and ASTM requirements. Insulated with XLP as specified and applied tightly to the conductor in a concentric manner. All black insulation is rated "Sunlight Resistant". The minimum at any point  shall not be less than 90% of the specified average thickness in compliance with UL44. The wire shall be identified by surface marking indicating the manufacturer, conductor size, voltage rating, UL symbol, and type desighation. The wire shall be continuously spark tested at 7500 Volts DC. Other electrical and mechanical tests shall be inaccordance with UL44, UL854 and UL1581.


Standard:

• ASTM B-1, B-3, and B-8 for copper conductors.
• ICEA S-66-524/NEMA WC7 Cross Linked Polyethylene Insulated Wire & Cable.
• UL 854 for Service Entrance Cables(incl. Para. 854-38.7 for 300 hr. sunlight resistance) and UL 44 for Thermoset Insulated Wires & Cables, Fed Spec J-C-30B.
