35KV MV AL 100% TRXLPE CONCENTRIC NEUTRAL UL

Product Specification

MOQ

10KM

Size

1/0AWG ~ 1500Kcmil

Custom

Customizable

Standard

UL 1072

Size

750KCMIL 1/0AWVG 2/0AWG 3/0AWG 4/0AWG 250KCMIL 350KCMIL 500KCMIL 1000KCMIL 1250KCMIL 1500KCMIL

GET A QUOTE

Desciption

Application：

Use in wet or dry locations, direct burial, underground ducts, and exposure to direct sunlight. Used for renewable projects with wind for solar applications and conductor temperature not to exceed 105℃ or 90℃.

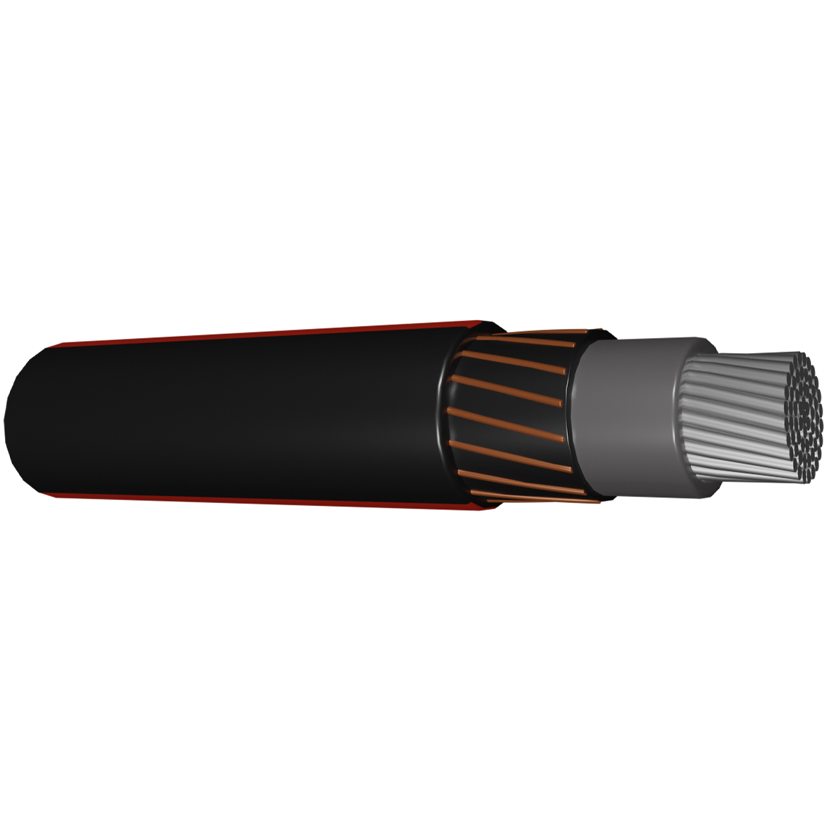

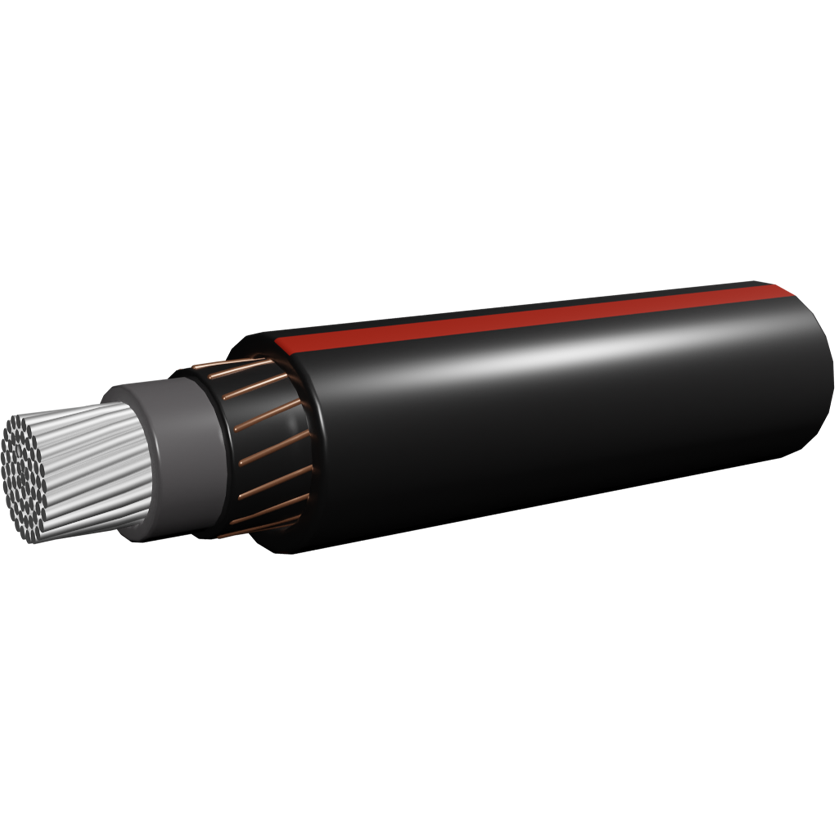

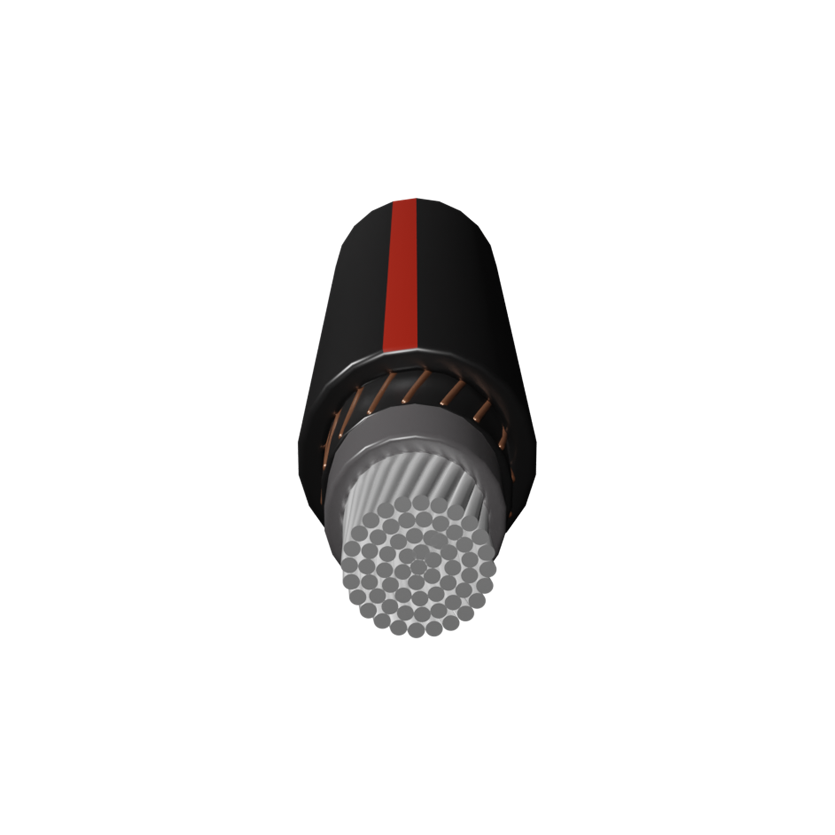

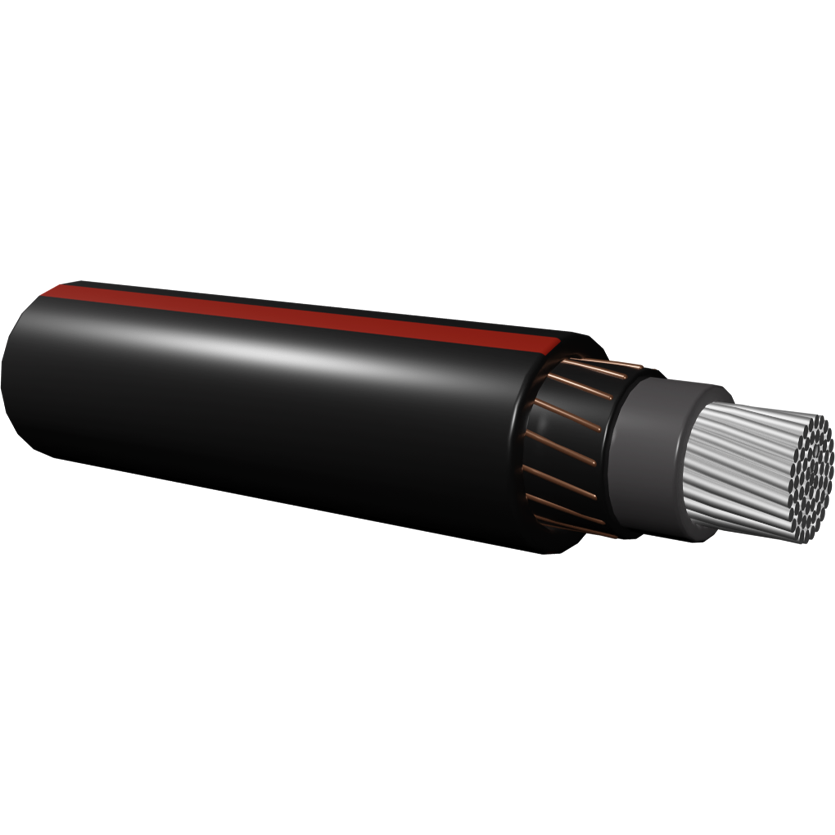

CONSTRUCTION:

Conductor: All Aluminum Conductor(AAC)
JACKET: XLPE/LLDPE(8.6mm)
Shield: Copper
Rated operating voltage: 35KV

Standard:
