AAAC Alloy Bare Aluminum

MOQ
10KM
Size
10~1000mm2
Custom
Customizable
Standard
customer area standard
  • AAAC Alloy Bare Aluminum
  • AAAC Alloy Bare Aluminum
  • AAAC Alloy Bare Aluminum
  • AAAC Alloy Bare Aluminum
Desciption

Application:

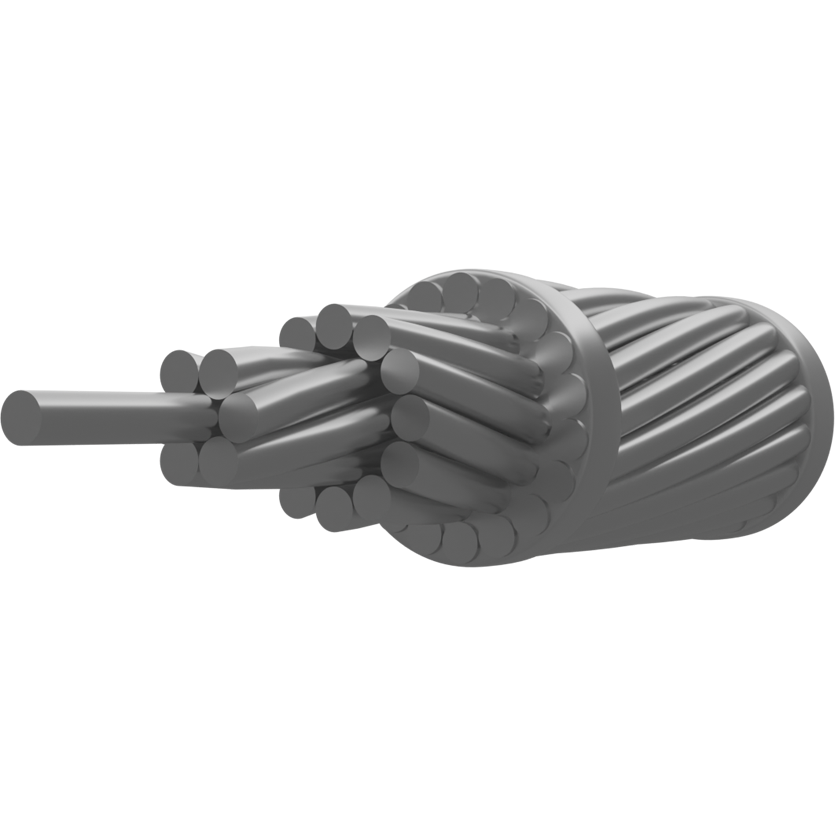

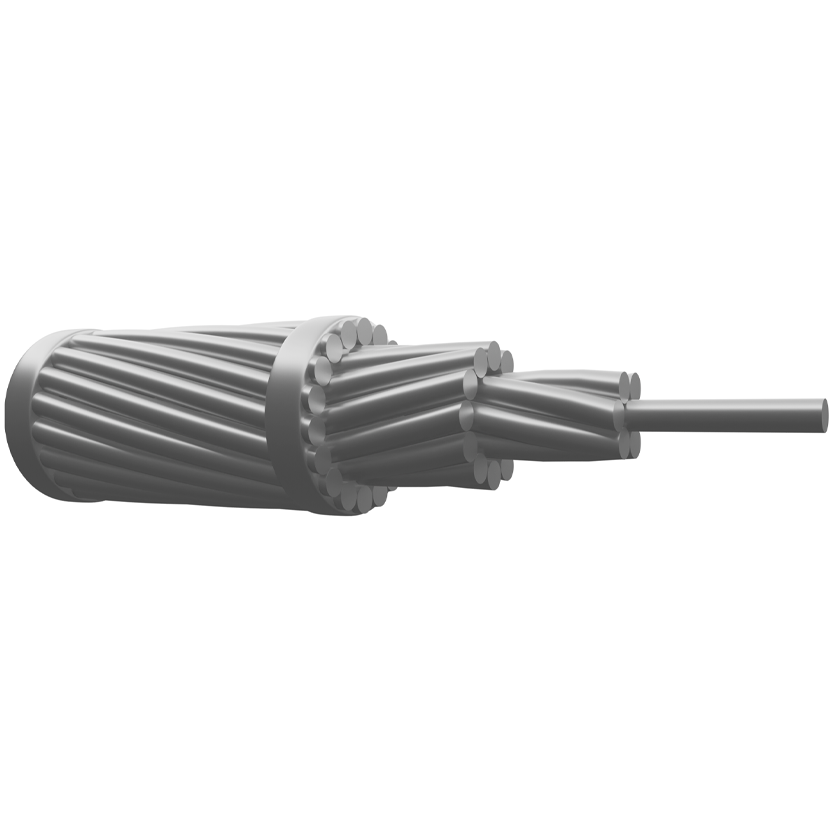

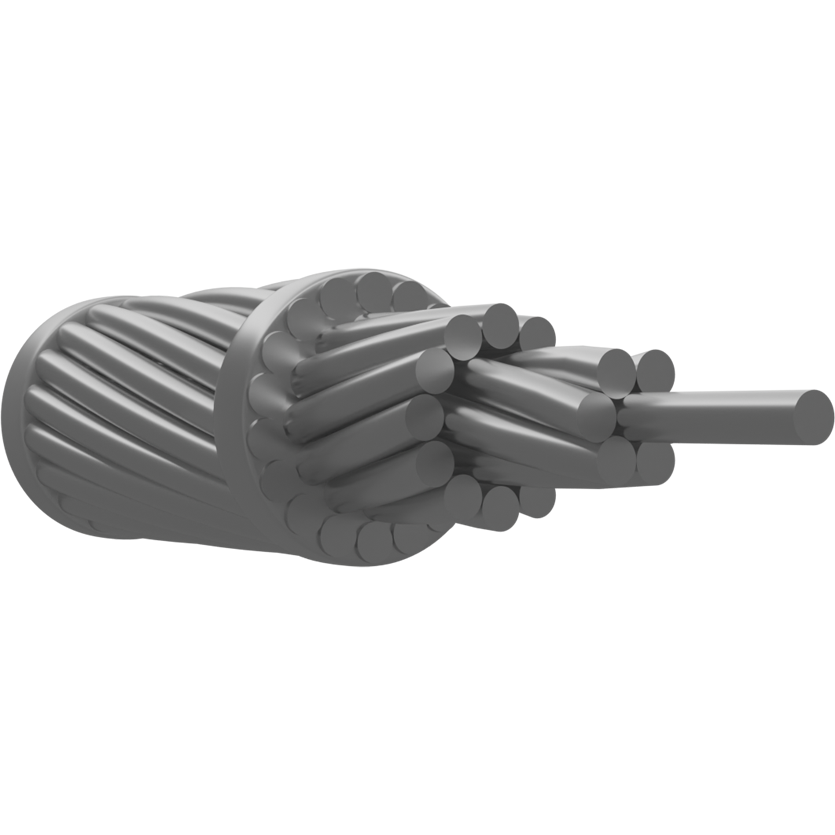

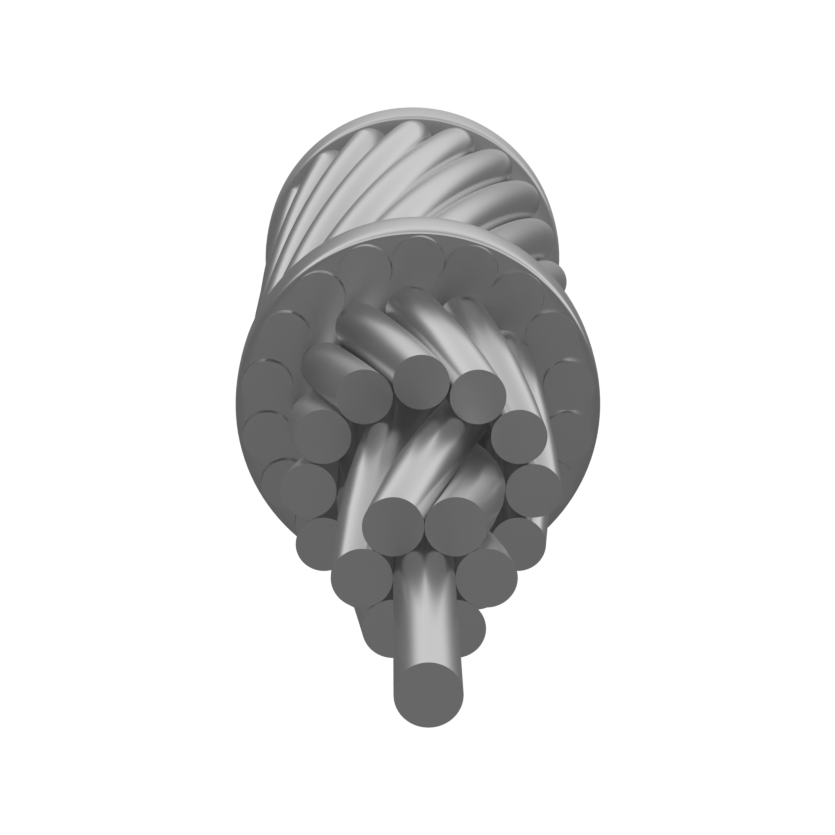

All Aluminum-Alloy Conductors (AAAC) is a concentric-lay-stranded conductor consisting of aluminum-alloy wires available in both single layer and multi-layer constructions.

They were developed to the need of economical conductor for overhead applications requiring higher strength than that of 1350 grade aluminum conductors, but without a steel core.

All Aluminum-Alloy Conductors (AAAC) can be used in Medium, High and Extra-High voltage transmission lines. AAAC offers better sag performance due to the high strength-to-weight ratio provided by the aluminum-alloy.


Construction:
Bare aluminum alloy conuctor, 6201 AL

Standard:
ASTM B398 B399, IEC60502
