Application:
NA2XY Cable can be used for fixed installation in buildings - fixed on cable trays, in free air, within conduits, or in walls – or for underground use in direct burial and in damp environments where there is no risk of mechanical damage.

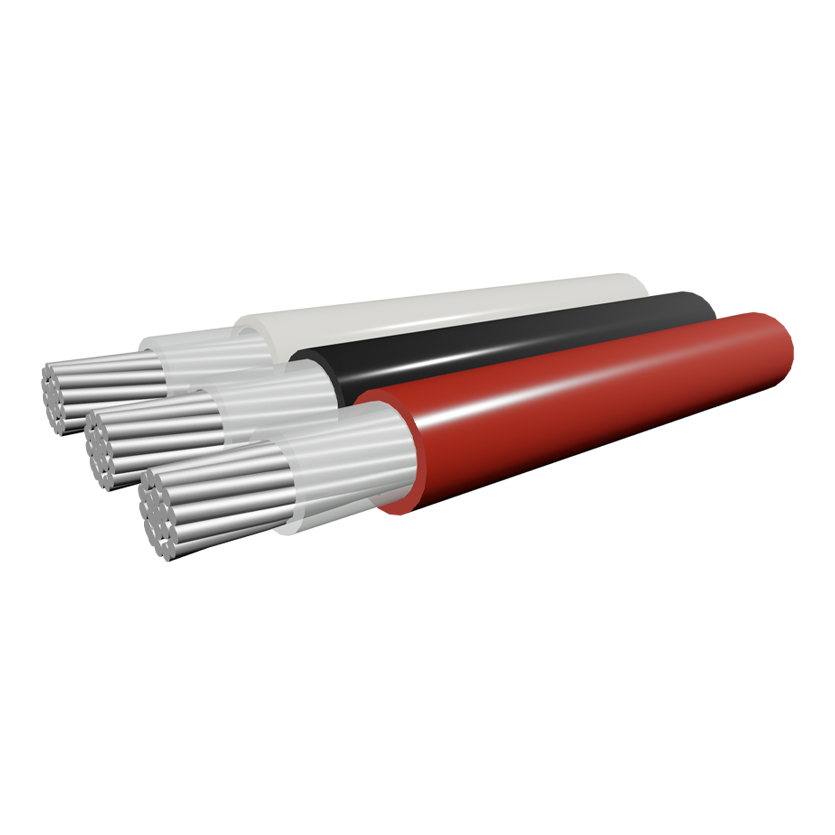

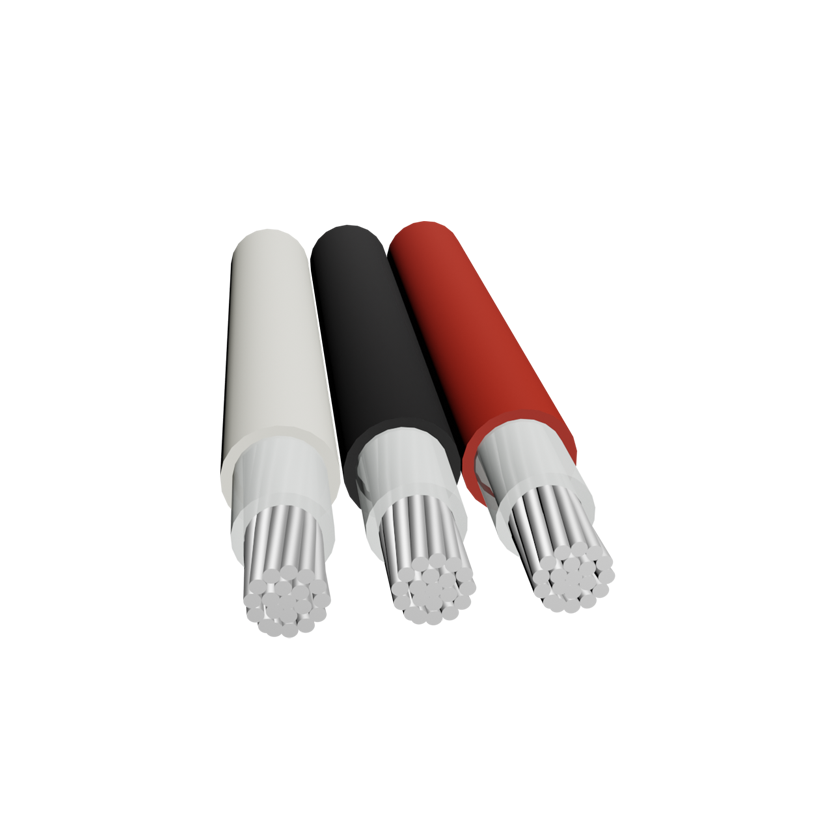

CONSTRUCTION:
Conductor: 1350 All Aluminum Conductor(AAC)
Insulation: XLPE(1.7mm)
Sheath: PVC(1.7mm)
3*70: Four conductors, a single section of 70 square.
Single cable: 37*2.90
| CARACTERISTICAS DIMENSIONALES | ||||||
| Seccion Nominal(mm2) | Number of conductor aluminum wires | Espesor Nominal(mm) | Dimensiones Exteriores(mm) | Peso Total Aprox(kg/km) | ||
| Aislante | Cubierta | Diametro cade Fase | Cable Total | |||
| 3-1*10 | 7 | 0,7 | 1,4 | 8,5 | 9*26 | 235 |
| 3-1*16 | 7 | 0,7 | 1,4 | 10,0 | 10*30 | 320 |
| 3-1*25 | 7 | 0,9 | 1,4 | 12,0 | 12*35 | 450 |
| 3-1*35 | 7 | 0,9 | 1,4 | 13,0 | 13*39 | 525 |
| 3-1*70 | 19 | 1,1 | 1,4 | 16,0 | 16*48 | 925 |
| 3-1*120 | 19 | 1,2 | 1,5 | 19,0 | 19*57 | 1480 |
| 3-1*185 | 37 | 1,6 | 1,5 | 24,0 | 24*72 | 2205 |
| 3-1*240 | 37 | 1,7 | 1,7 | 27,0 | 27*81 | 2825 |
| 3-1*400 | 61 | 2,0 | 1,9 | 32,0 | 32*96 | 4365 |
| CARACTERISTICAS ELECTRICAS | |||||
| seccion Nominal(mm2) | Resistencia Conductor(ohm/km) | Peactancia inductiva ohm/km a0.6Hz | Capacidad de Corriente(Amp) | ||
| c.ca20℃ | c.ca90℃ | Aire Libre 30℃ | Enterrado Temp=20℃ 100℃-cm/W | ||
| 3-1*10 | 3,08 | 3,95 | 0,147 | 60 | 78 |
| 3-1*16 | 1,19 | 2,45 | 0,138 | 80 | 101 |
| 3-1*25 | 1,20 | 1,54 | 0,124 | 108 | 131 |
| 3-1*35 | 0,868 | 1,11 | 0,128 | 133 | 157 |
| 3-1*70 | 0,443 | 0,569 | 0,121 | 207 | 228 |
| 3-1*120 | 0,253 | 0,326 | 0,116 | 300 | 311 |
| 3-1*185 | 0,164 | 0,212 | 0,115 | 403 | 394 |
| 3-1*240 | 0,125 | 0,163 | 0,113 | 482 | 458 |
| 3-1*400 | 0,078 | 0,104 | 0,111 | 662 | 592 |
