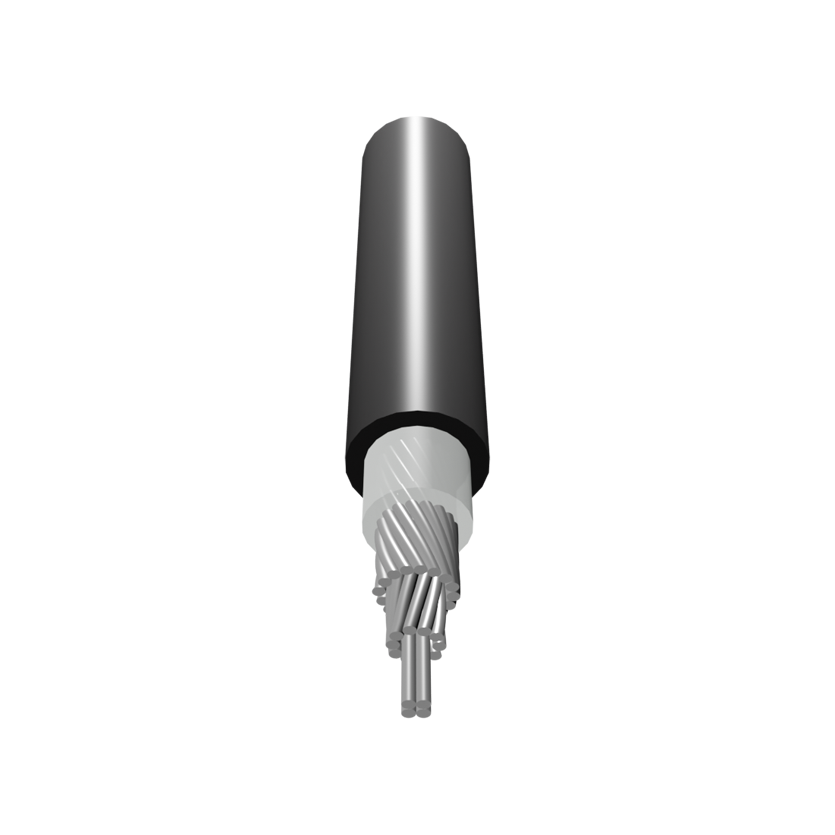

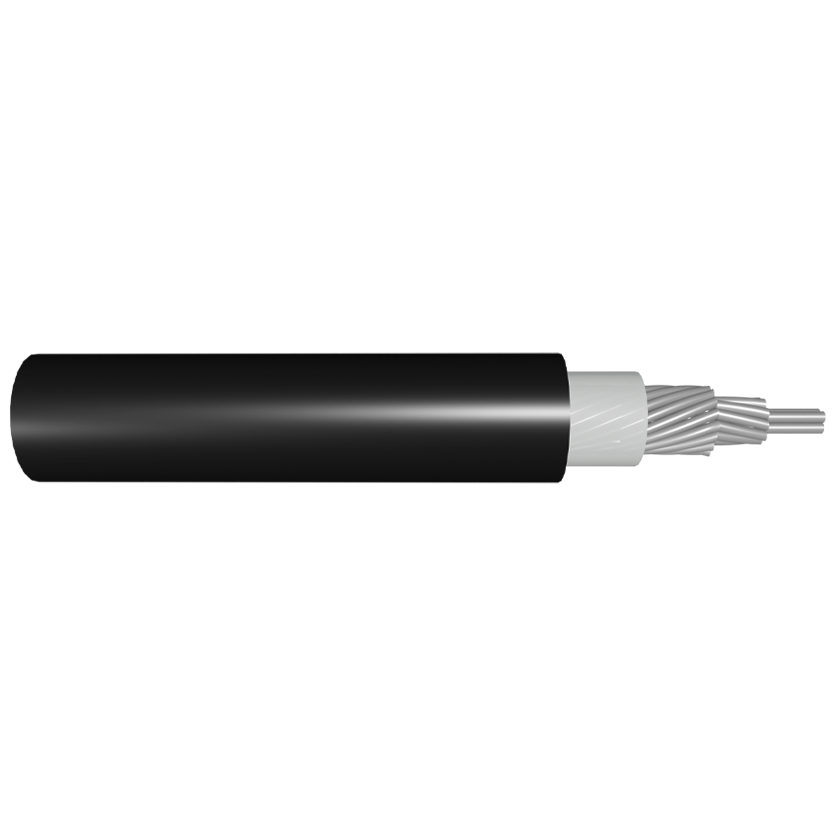

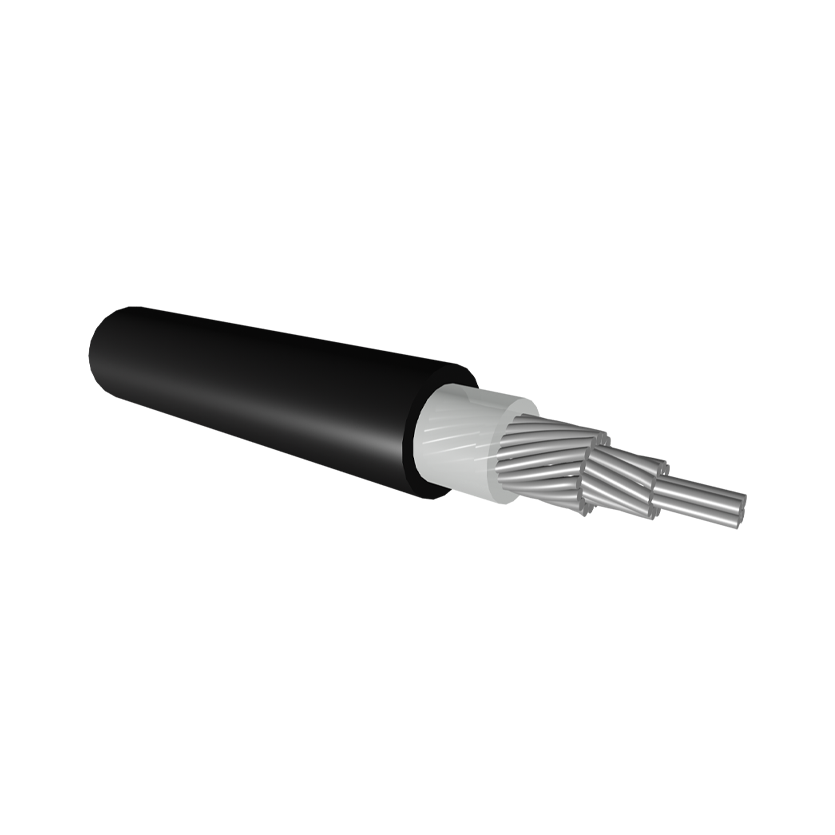

Overhead ABC Cable 1*150mm2
MOQ
10KM
Size
10~1000mm2
Custom
Customizable
Standard
Customer area standard
Application:
The cables are laid indoors, in trenches and pipes, and can also be buried in the soil of loose, insulated polyvinyl chloride sheathed power cables, which cannot withstand external forces. When the cable is laid underground, it can withstand the external mechanical force, but it can not withstand the greater tension.
Characteristics of the cable:
The maximum rated working temperature of the conductor of the cable is 90 ° C, the maximum working temperature is less than or equal to +70 ° C, the cable temperature shall not exceed 160 ° C within 5 seconds of short circuit, and the ambient temperature during laying shall not be lower than 0 ° C.
| specification | |
| Size | 1*150mm2 |
| Conductor | Aluminum |
| Conductor composition | 30/2.52 |
| Insulation | XLPE |
| Insulation thickness | 1.4mm |
| Sheath | PVC |
| Sheath thickness | 1.6mm |
| Voltage | 0.6/1KV |
